스위치 & 푸시버튼 박스
(SWITCH & PUSH BUTTON BOX)
철재 BOX무게의 1/4정도로 운반 및 작업이 용이하며 부식이 없고 절연이 우수합니다.
엄격한 품질검사로 방수, 방진 등의 시험에 합격한 제품입니다 (IPT67)

숙련된 품질관리와 정밀성형으로 독일의 VDE, 유럽공동체 CE, 미국 소비단체의 UL마크 승인 제품입니다.

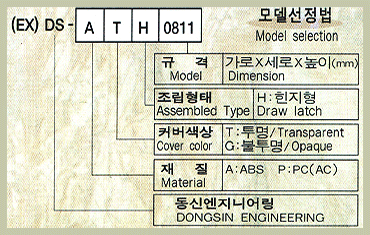

제품명 - 기호와 약자
제품별 규격
로그인하시면 가격을 열람하실수 있습니다.
품명 모 델 명 규 격
(가로X세로
X높이)		 소비자
가격		 철
중판단가		 프라스틱
중판단가		 소비자가
(SET가격)
SWITCH BOX (옥내용) 볼트개폐형
색상 DS-AG-0506 50X65X55 2,200 390 2,590
카바:회색 DS-AG-0808 80X82X60 4,200 500 4,700
본체:회색 DS-AG-0712 75X125X75 4,400 650 300 5,050
재질 DS-AG-0712-1 75X125X100 4,700 650 300 5,350
ABS DS-AG-0712-2 75X125X125 5,000 650 300 5,650
DS-AG-0811-S 80X110X45 3,900 650 300 4,550
DS-AG-0811 80X110X70 4,400 650 300 5,050
DS-AG-0813 80X130X70 5,000 780 320 5,780
DS-AG-0816-S 80X160X55 5,600 780 6,380
DS-AG-0816 80X160X90 6,300 780 7,080
DS-AG-0818 80X180X70 6,100 780 450 6,880
DS-AG-0825 80X250X70 6,600 1,300 550 7,900
DS-AG-0811-1 80X110X85 5,500 650 300 6,150
DS-AG-0813-1 80X130X85 6,100 780 320 6,880
DS-AG-0818-1 80X180X85 7,200 780 450 7,980
DS-AG-0825-1 80X250X85 7,700 1,300 550 9,000
DS-AG-1212-S 125X125X75 6,100 910 500 7,010
DS-AG-1212 125X125X100 6,600 910 500 7,510
DS-AG-1217 125X175X75 7,200 1,300 550 8,500
DS-AG-1217-1 125X175X100 7,700 1,300 550 9,000
DS-AG-1417 140X170X95 7,700 1,430 600 9,130
DS-AG-1717 175X175X75 8,700 1,430 800 10,130
DS-AG-1717-1 175X175X100 9,200 1,430 800 10,630
DS-AG-1717-2 175X175X125 9,900 1,430 800 11,330
DS-AG-1725 175X250X75 12,100 1,950 950 14,050
DS-AG-1725-1 175X250X100 12,800 1,950 950 14,750
DS-AG-1423 140X230X95 7,900 1,430 9,330
DS-AG-1520 150X200X100 7,700 1,430 800 9,130
DS-AG-1520-1 150X200X130 8,300 1,430 800 9,730
DS-AG-1525 150X250X100 8,300 1,560 900 9,860
DS-AG-1525-1 150X250X130 9,400 1,560 900 10,960
DS-AG-2020-S 200X200X95 8,300 1,560 900 9,860
DS-AG-2020 200X200X130 9,400 1,560 900 10,960
SWITCH BOX (옥내용) 볼트개폐형
색상 DS-AT-0811-S 80X110X45 4,500 650 300 5,150
카바:투명 DS-AT-0808 80X82X60 4,400 500 4,900
본체:회색 DS-AT-0712 75X125X75 5,000 650 300 5,650
DS-AT-0712-1 75X125X100 5,300 650 300 5,950
재질 DS-AT-0712-2 75X125X125 5,800 650 300 6,450
카바:PC DS-AT-0811 80X110X70 5,000 650 300 5,650
본체:ABS DS-AT-0813 80X130X70 6,200 780 320 6,980
DS-AT-0816-S 80X160X55 6,800 780 7,580
DS-AT-0816 80X160X90 7,200 780 7,980
DS-AT-0818 80X180X70 7,300 780 450 8,080
DS-AT-0825 80X250X70 7,800 1,300 550 9,100
DS-AT-0811-1 80X110X85 6,100 650 300 6,750
DS-AT-0813-1 80X130X85 7,800 780 320 8,580
DS-AT-0818-1 80X180X85 8,400 780 450 9,180
DS-AT-0825-1 80X250X85 8,900 1,300 550 10,200
DS-AT-1212-S 125X125X75 6,700 910 500 7,610
DS-AT-1212 125X125X100 7,200 910 500 8,110
DS-AT-1217 125X175X75 7,800 1,300 550 9,100
DS-AT-1217-1 125X175X100 8,300 1,300 550 9,600
DS-AT-1417 140X170X95 8,900 1,430 600 10,330
DS-AT-1717 175X175X75 10,200 1,430 800 11,630
DS-AT-1717-1 175X175X100 11,000 1,430 800 12,430
DS-AT-1717-2 175X175X125 12,200 1,430 800 13,630
DS-AT-1725 175X250X75 14,400 1,950 950 16,350
DS-AT-1725-1 175X250X100 15,600 1,950 950 17,550
DS-AT-1423 140X230X95 9,500 1,430 10,930
DS-AT-1520 150X200X100 8,900 1,430 800 10,330
DS-AT-1520-1 150X200X130 10,000 1,430 800 11,430
DS-AT-1525 150X250X100 10,000 1,560 900 11,560
DS-AT-1525-1 150X250X130 11,100 1,560 900 12,660
DS-AT-2020-S 200X200X95 9,500 1,560 900 11,060
DS-AT-2020 200X200X130 10,600 1,560 900 12,160
SWITCH BOX (옥외용) 볼트개폐형
색상 DS-PG-0506 50X65X55 2,900 390 3,290
카바:회색 DS-PG-0808 80X82X60 5,200 500 5,700
본체:회색 DS-PG-0712 75X125X75 6,100 650 300 6,750
DS-PG-0712-1 75X125X100 6,200 650 300 6,850
재질 DS-PG-0712-2 75X125X125 6,300 650 300 6,950
ABS/PC DS-PG-0811-S 80X110X45 5,200 650 300 5,850
DS-PG-0811 80X110X70 5,600 650 300 6,250
DS-PG-0813 80X130X70 6,900 780 320 7,680
DS-PG-0816-S 80X160X55 7,600 780 8,380
DS-PG-0816 80X160X90 8,100 780 8,880
DS-PG-0818 80X180X70 8,100 780 450 8,880
DS-PG-0825 80X250X70 8,900 1,300 550 10,200
DS-PG-0811-1 80X110X85 6,800 650 300 7,450
DS-PG-0813-1 80X130X85 8,600 780 320 9,380
DS-PG-0818-1 80X180X85 9,200 780 450 9,980
DS-PG-0825-1 80X250X85 10,000 1,300 550 11,300
DS-PG-1212-S 125X125X75 7,800 910 500 8,710
DS-PG-1212 125X125X100 8,400 910 500 9,310
DS-PG-1217 125X175X75 8,600 1,300 550 9,900
DS-PG-1217-1 125X175X100 9,200 1,300 550 10,500
DS-PG-1417 140X170X95 9,700 1,430 600 11,130
DS-PG-1717 175X175X75 12,700 1,430 800 14,130
DS-PG-1717-1 175X175X100 13,200 1,430 800 14,630
DS-PG-1717-2 175X175X125 15,300 1,430 800 16,730
DS-PG-1725 175X250X75 18,400 1,950 950 20,350
DS-PG-1725-1 175X250X100 19,600 1,950 950 21,550
DS-PG-1423 140X230X95 10,400 1,430 11,830
DS-PG-1520 150X200X100 9,700 1,430 800 11,130
DS-PG-1520-1 150X200X130 10,800 1,430 800 12,230
DS-PG-1525 150X250X100 10,900 1,560 900 12,460
DS-PG-1525-1 150X250X130 12,100 1,560 900 13,660
DS-PG-2020-S 200X200X95 11,500 1,560 900 13,060
DS-PG-2020 200X200X130 13,200 1,560 900 14,760
SWITCH BOX (옥외용) 볼트개폐형
색상 DS-PT-0506 50X65X55 2,900 390 3,290
카바:투명 DS-PT-0808 80X82X60 5,200 500 5,700
본체:회색 DS-PT-0712 75X125X75 6,100 650 300 6,750
DS-PT-0712-1 75X125X100 6,200 650 300 6,850
재질 DS-PT-0712-2 75X125X125 6,300 650 300 6,950
커바:PC DS-PT-0811-S 80X110X45 5,200 650 300 5,850
본체: DS-PT-0811 80X110X70 5,600 650 300 6,250
ABS/PC DS-PT-0813 80X130X70 6,900 780 320 7,680
DS-PT-0816-S 80X160X55 7,600 780 8,380
DS-PT-0816 80X160X90 8,100 780 8,880
DS-PT-0818 80X180X70 8,100 780 450 8,880
DS-PT-0825 80X250X70 8,900 1,300 550 10,200
DS-PT-0811-1 80X110X85 6,800 650 300 7,450
DS-PT-0813-1 80X130X85 8,600 780 320 9,380
DS-PT-0818-1 80X180X85 9,200 780 450 9,980
DS-PT-0825-1 80X250X85 10,000 1,300 550 11,300
DS-PT-1212-S 125X125X75 7,800 910 500 8,710
DS-PT-1212 125X125X100 8,400 910 500 9,310
DS-PT-1217 125X175X75 8,600 1,300 550 9,900
DS-PT-1217-1 125X175X100 9,200 1,300 550 10,500
DS-PT-1417 140X170X95 9,700 1,430 600 11,130
DS-PT-1717 175X175X75 12,700 1,430 800 14,130
DS-PT-1717-1 175X175X100 13,200 1,430 800 14,630
DS-PT-1717-2 175X175X125 15,300 1,430 800 16,730
DS-PT-1725 175X250X75 18,400 1,950 950 20,350
DS-PT-1725-1 175X250X100 19,600 1,950 950 21,550
DS-PT-1423 140X230X95 10,400 1,430 11,830
DS-PT-1520 150X200X100 9,700 1,430 800 11,130
DS-PT-1520-1 150X200X130 10,800 1,430 800 12,230
DS-PT-1525 150X250X100 10,900 1,560 900 12,460
DS-PT-1525-1 150X250X130 12,100 1,560 900 13,660
DS-PT-2020-S 200X200X95 11,500 1,560 900 13,060
DS-PT-2020 200X200X130 13,200 1,560 900 14,760

로그인하시면 가격을 열람하실수 있습니다.
SWITCH BOX (옥외용) 볼트개폐형
색상 DS-PCG-0506 50X65X55 3,700 390 4,090
카바:회색 DS-PCG-0808 80X82X60 6,600 500 7,100
본체:회색 DS-PCG-0712 75X125X75 7,000 650 300 7,650
DS-PCG-0712-1 75X125X100 7,400 650 300 8,050
재질 DS-PCG-0712-2 75X125X125 8,100 650 300 8,750
PBT DS-PCG-0811-S 80X110X45 6,600 650 300 7,250
DS-PCG-0811 80X110X70 7,100 650 300 7,750
DS-PCG-0813 80X130X70 8,600 780 320 9,380
DS-PCG-0816-S 80X160X55 9,600 780 10,380
DS-PCG-0816 80X160X90 10,100 780 10,880
DS-PCG-0818 80X180X70 10,100 780 450 10,880
DS-PCG-0825 80X250X70 11,200 1,300 550 12,500
DS-PCG-0811-1 80X110X85 8,500 650 300 9,150
DS-PCG-0813-1 80X130X85 10,800 780 320 11,580
DS-PCG-0818-1 80X180X85 11,500 780 450 12,280
DS-PCG-0825-1 80X250X85 12,500 1,300 550 13,800
DS-PCG-1212-S 125X125X75 9,800 910 500 10,710
DS-PCG-1212 125X125X100 10,800 910 500 11,710
DS-PCG-1217 125X175X75 10,800 1,300 550 12,100
DS-PCG-1217-1 125X175X100 11,500 1,300 550 12,800
DS-PCG-1417 140X170X95 12,100 1,430 600 13,530
DS-PCG-1717 175X175X75 15,300 1,430 800 16,730
DS-PCG-1717-1 175X175X100 16,700 1,430 800 18,130
DS-PCG-1717-2 175X175X125 18,200 1,430 800 19,630
DS-PCG-1725 175X250X75 22,000 1,950 950 23,950
DS-PCG-1725-1 175X250X100 23,000 1,950 950 24,950
DS-PCG-1423 140X230X95 12,900 1,430 14,330
DS-PCG-1520 150X200X100 12,100 1,430 800 13,530
DS-PCG-1520-1 150X200X130 13,600 1,430 800 15,030
DS-PCG-1525 150X250X100 13,700 1,560 900 15,260
DS-PCG-1525-1 150X250X130 15,200 1,560 900 16,760
DS-PCG-2020-S 200X200X95 14,400 1,560 900 15,960
DS-PCG-2020 200X200X130 16,600 1,560 900 18,160
SWITCH BOX (옥외용) 볼트개폐형
색상 DS-PCT-0808 80X82X60 6,600 500 7,100
카바:투명 DS-PCT-0712 75X125X75 7,000 650 300 7,650
본체:회색 DS-PCT-0712-1 75X125X100 7,400 650 300 8,050
DS-PCT-0712-2 75X125X125 8,100 650 300 8,750
재질 DS-PCT-0811-S 80X110X45 6,600 650 300 7,250
카바:PC DS-PCT-0811 80X110X70 7,100 650 300 7,750
본체 : DS-PCT-0813 80X130X70 8,600 780 320 9,380
PBT DS-PCT-0816-S 80X160X55 9,600 780 10,380
DS-PCT-0816 80X160X90 10,100 780 10,880
DS-PCT-0818 80X180X70 10,100 780 450 10,880
DS-PCT-0825 80X250X70 11,200 1,300 550 12,500
DS-PCT-0811-1 80X110X85 8,500 650 300 9,150
DS-PCT-0813-1 80X130X85 10,800 780 320 11,580
DS-PCT-0818-1 80X180X85 11,500 780 450 12,280
DS-PCT-0825-1 80X250X85 12,500 1,300 550 13,800
DS-PCT-1212-S 125X125X75 9,800 910 500 10,710
DS-PCT-1212 125X125X100 10,800 910 500 11,710
DS-PCT-1217 125X175X75 10,800 1,300 550 12,100
DS-PCT-1217-1 125X175X100 11,500 1,300 550 12,800
DS-PCT-1417 140X170X95 12,100 1,430 600 13,530
DS-PCT-1717 175X175X75 15,300 1,430 800 16,730
DS-PCT-1717-1 175X175X100 16,700 1,430 800 18,130
DS-PCT-1717-2 175X175X125 18,200 1,430 800 19,630
DS-PCT-1725 175X250X75 22,000 1,950 950 23,950
DS-PCT-1725-1 175X250X100 23,000 1,950 950 24,950
DS-PCT-1423 140X230X95 12,900 1,430 14,330
DS-PCT-1520 150X200X100 12,100 1,430 800 13,530
DS-PCT-1520-1 150X200X130 13,600 1,430 800 15,030
DS-PCT-1525 150X250X100 13,700 1,560 900 15,260
DS-PCT-1525-1 150X250X130 15,200 1,560 900 16,760
DS-PCT-2020-S 200X200X95 14,400 1,560 900 15,960
DS-PCT-2020 200X200X130 16,600 1,560 900 18,160
SWITCH BOX (옥내용) 힌지개폐형
색상 DS-AGH-0811 80X110X70 8,300 650 300 8,950
카바:회색 DS-AGH-1108 110X80X70 8,300 650 300 8,950
본체:회색 DS-AGH-0813 80X130X70 8,900 780 320 9,680
DS-AGH-1308 130X80X70 8,900 780 320 9,680
재질 DS-AGH-0818 80X180X70 13,300 780 450 14,080
ABS DS-AGH-1808 180X80X70 10,000 780 450 10,780
DS-AGH-0825 80X250X70 13,900 1,300 550 15,200
DS-AGH-2508 280X80X70 10,500 1,300 550 11,800
DS-AGH-0811-1 80X110X85 9,400 650 300 10,050
DS-AGH-1108-1 110X80X85 9,400 650 300 10,050
DS-AGH-0813-1 80X130X85 10,000 780 320 10,780
DS-AGH-1308-1 130X80X85 10,000 780 320 10,780
DS-AGH-0818-1 80X180X85 14,500 780 450 15,280
DS-AGH-1808-1 180X80X85 11,100 780 450 11,880
DS-AGH-0825-1 80X250X85 15,000 1,300 550 16,300
DS-AGH-2508-1 250X80X85 11,600 1,300 550 12,900
DS-AGH-1212-S 125X125X75 11,300 910 500 12,210
DS-AGH-1212 125X125X100 11,800 910 500 12,710
DS-AGH-1217 125X175X75 14,500 1,300 550 15,800
DS-AGH-1712 175X125X75 12,000 1,300 550 13,300
DS-AGH-1217-1 125X175X100 15,000 1,300 550 16,300
DS-AGH-1712-1 175X125X100 12,500 1,300 550 13,800
DS-AGH-1417 140X170X95 15,000 1,430 600 16,430
DS-AGH-1714 170X140X95 15,000 1,430 600 16,430
DS-AGH-1520 150X200X100 15,000 1,430 800 16,430
DS-AGH-2015 200X150X100 15,000 1,430 800 16,430
DS-AGH-1520-1 150X200X130 15,600 1,430 800 17,030
DS-AGH-2015-1 200X150X130 15,600 1,430 800 17,030
DS-AGH-1525 150X250X100 15,600 1,560 900 17,160
DS-AGH-2515 250X150X100 15,600 1,560 900 17,160
DS-AGH-1525-1 150X250X130 16,700 1,560 900 18,260
DS-AGH-2515-1 250X150X130 16,700 1,560 900 18,260
DS-AGH-2020-S 200X200X100 15,600 1,560 900 17,160
DS-AGH-2020 200X200X130 16,700 1,560 900 18,260
SWITCH BOX (옥내용) 힌지개폐형
색상 DS-ATH-0811 80X110X70 8,900 650 300 9,550
카바:투명 DS-ATH-1108 110X80X70 8,900 650 300 9,550
본체:회색 DS-ATH-0813 80X130X70 10,800 780 320 11,580
DS-ATH-1308 130X80X70 10,800 780 320 11,580
재질 DS-ATH-0818 80X180X70 14,600 780 450 15,380
카바:PC DS-ATH-1808 180X80X70 14,600 780 450 15,380
본체:ABS DS-ATH-0825 80X250X70 15,100 1,300 550 16,400
DS-ATH-2508 280X80X70 11,700 1,300 550 13,000
DS-ATH-0811-1 80X110X85 10,000 650 300 10,650
DS-ATH-1108-1 110X80X85 10,000 650 300 10,650
DS-ATH-0813-1 80X130X85 11,700 780 320 12,480
DS-ATH-1308-1 130X80X85 11,700 780 320 12,480
DS-ATH-0818-1 80X180X85 15,700 780 450 16,480
DS-ATH-1808-1 180X80X85 12,300 780 450 13,080
DS-ATH-0825-1 80X250X85 16,200 1,300 550 17,500
DS-ATH-2508-1 250X80X85 12,800 1,300 550 14,100
DS-ATH-1212-S 125X125X75 11,900 910 500 12,810
DS-ATH-1212 125X125X100 12,400 910 500 13,310
DS-ATH-1217 125X175X75 15,700 1,300 550 17,000
DS-ATH-1712 175X125X75 13,400 1,300 550 14,700
DS-ATH-1217-1 125X175X100 16,200 1,300 550 17,500
DS-ATH-1712-1 175X125X100 13,800 1,300 550 15,100
DS-ATH-1417 140X170X95 16,200 1,430 600 17,630
DS-ATH-1714 170X140X95 16,200 1,430 600 17,630
DS-ATH-1520 150X200X100 16,200 1,430 800 17,630
DS-ATH-2015 200X150X100 16,200 1,430 800 17,630
DS-ATH-1520-1 150X200X130 17,300 1,430 800 18,730
DS-ATH-2015-1 200X150X130 17,300 1,430 800 18,730
DS-ATH-1525 150X250X100 17,300 1,560 900 18,860
DS-ATH-2515 250X150X100 17,300 1,560 900 18,860
DS-ATH-1525-1 150X250X130 18,400 1,560 900 19,960
DS-ATH-2515-1 250X150X130 18,400 1,560 900 19,960
DS-ATH-2020-S 200X200X100 16,800 1,560 900 18,360
DS-ATH-2020 200X200X130 17,900 1,560 900 19,460
SWITCH BOX (옥외용) 힌지개폐형
색상 DS-PGH-0811 80X110X70 9,500 650 300 10,150
카바:회색 DS-PGH-1108 110X80X70 9,500 650 300 10,150
본체:회색 DS-PGH-0813 80X130X70 10,800 780 320 11,580
DS-PGH-1308 130X80X70 10,800 780 320 11,580
재질 DS-PGH-0818 80X180X70 15,400 780 450 16,180
ABS/PC DS-PGH-1808 180X80X70 12,000 780 450 12,780
DS-PGH-0825 80X250X70 16,200 1,300 550 17,500
DS-PGH-2508 280X80X70 12,800 1,300 550 14,100
DS-PGH-0811-1 80X110X85 10,800 650 300 11,450
DS-PGH-1108-1 110X80X85 10,800 650 300 11,450
DS-PGH-0813-1 80X130X85 12,500 780 320 13,280
DS-PGH-1308-1 130X80X85 12,500 780 320 13,280
DS-PGH-0818-1 80X180X85 16,500 780 450 17,280
DS-PGH-1808-1 180X80X85 13,100 780 450 13,880
DS-PGH-0825-1 80X250X85 17,400 1,300 550 18,700
DS-PGH-2508-1 250X80X85 14,000 1,300 550 15,300
DS-PGH-1212-S 125X125X75 13,000 910 500 13,910
DS-PGH-1212 125X125X100 13,600 910 500 14,510
DS-PGH-1217 125X175X75 16,400 1,300 550 17,700
DS-PGH-1712 175X125X75 13,900 1,300 550 15,200
DS-PGH-1217-1 125X175X100 17,000 1,300 550 18,300
DS-PGH-1712-1 175X125X100 14,500 1,300 550 15,800
DS-PGH-1417 140X170X95 17,000 1,430 600 18,430
DS-PGH-1714 170X140X95 17,000 1,430 600 18,430
DS-PGH-1520 150X200X100 17,000 1,430 800 18,430
DS-PGH-2015 200X150X100 17,000 1,430 800 18,430
DS-PGH-1520-1 150X200X130 18,200 1,430 800 19,630
DS-PGH-2015-1 200X150X130 18,200 1,430 800 19,630
DS-PGH-1525 150X250X100 18,200 1,560 900 19,760
DS-PGH-2515 250X150X100 18,200 1,560 900 19,760
DS-PGH-1525-1 150X250X130 19,400 1,560 900 20,960
DS-PGH-2515-1 250X150X130 19,400 1,560 900 20,960
DS-PGH-2020-S 200X200X100 18,800 1,560 900 20,360
DS-PGH-2020 200X200X130 20,500 1,560 900 22,060
SWITCH BOX (옥외용) 힌지개폐형
색상 DS-PTH-0811 80X110X70 9,500 650 300 10,150
카바:투명 DS-PTH-1108 110X80X70 9,500 650 300 10,150
본체:회색 DS-PTH-0813 80X130X70 10,800 780 320 11,580
DS-PTH-1308 130X80X70 10,800 780 320 11,580
재질 DS-PTH-0818 80X180X70 15,400 780 450 16,180
카바:PC DS-PTH-1808 180X80X70 12,000 780 450 12,780
본체: DS-PTH-0825 80X250X70 16,200 1,300 550 17,500
ABS/PC DS-PTH-2508 280X80X70 12,800 1,300 550 14,100
DS-PTH-0811-1 80X110X85 10,800 650 300 11,450
DS-PTH-1108-1 110X80X85 10,800 650 300 11,450
DS-PTH-0813-1 80X130X85 12,500 780 320 13,280
DS-PTH-1308-1 130X80X85 12,500 780 320 13,280
DS-PTH-0818-1 80X180X85 16,500 780 450 17,280
DS-PTH-1808-1 180X80X85 13,100 780 450 13,880
DS-PTH-0825-1 80X250X85 17,400 1,300 550 18,700
DS-PTH-2508-1 250X80X85 14,000 1,300 550 15,300
DS-PTH-1212-S 125X125X75 13,000 910 500 13,910
DS-PTH-1212 125X125X100 13,600 910 500 14,510
DS-PTH-1217 125X175X75 16,400 1,300 550 17,700
DS-PTH-1712 175X125X75 13,900 1,300 550 15,200
DS-PTH-1217-1 125X175X100 17,000 1,300 550 18,300
DS-PTH-1712-1 175X125X100 14,500 1,300 550 15,800
DS-PTH-1417 140X170X95 17,000 1,430 600 18,430
DS-PTH-1714 170X140X95 17,000 1,430 600 18,430
DS-PTH-1520 150X200X100 17,000 1,430 800 18,430
DS-PTH-2015 200X150X100 17,000 1,430 800 18,430
DS-PTH-1520-1 150X200X130 18,200 1,430 800 19,630
DS-PTH-2015-1 200X150X130 18,200 1,430 800 19,630
DS-PTH-1525 150X250X100 18,200 1,560 900 19,760
DS-PTH-2515 250X150X100 18,200 1,560 900 19,760
DS-PTH-1525-1 150X250X130 19,400 1,560 900 20,960
DS-PTH-2515-1 250X150X130 19,400 1,560 900 20,960
DS-PTH-2020-S 200X200X100 18,800 1,560 900 20,360
DS-PTH-2020 200X200X130 20,500 1,560 900 22,060
SWITCH BOX (옥외용) 힌지개폐형
색상 DS-PCGH-0811 80X110X70 11,900 650 300 12,550
카바:회색 DS-PCGH-1108 110X80X70 11,900 650 300 12,550
본체:회색 DS-PCGH-0813 80X130X70 13,500 780 320 14,280
DS-PCGH-1308 130X80X70 13,500 780 320 14,280
재질 DS-PCGH-0818 80X180X70 19,200 780 450 19,980
PBT DS-PCGH-1808 180X80X70 14,900 780 450 15,680
DS-PCGH-0825 80X250X70 20,300 1,300 550 21,600
DS-PCGH-2508 280X80X70 16,000 1,300 550 17,300
DS-PCGH-0811-1 80X110X85 13,600 650 300 14,250
DS-PCGH-1108-1 110X80X85 13,600 650 300 14,250
DS-PCGH-0813-1 80X130X85 15,700 780 320 16,480
DS-PCGH-1308-1 130X80X85 15,700 780 320 16,480
DS-PCGH-0818-1 80X180X85 20,600 780 450 21,380
DS-PCGH-1808-1 180X80X85 16,400 780 450 17,180
DS-PCGH-0825-1 80X250X85 21,700 1,300 550 23,000
DS-PCGH-2508-1 250X80X85 17,600 1,300 550 18,900
DS-PCGH-1212-S 125X125X75 16,300 910 500 17,210
DS-PCGH-1212 125X125X100 17,100 910 500 18,010
DS-PCGH-1217 125X175X75 20,600 1,300 550 21,900
DS-PCGH-1712 175X125X75 17,400 1,300 550 18,700
DS-PCGH-1217-1 125X175X100 22,800 1,300 550 24,100
DS-PCGH-1712-1 175X125X100 18,300 1,300 550 19,600
DS-PCGH-1417 140X170X95 11,200 1,430 600 12,630
DS-PCGH-1714 170X140X95 11,200 1,430 600 12,630
DS-PCGH-1520 150X200X100 21,200 1,430 800 22,630
DS-PCGH-2015 200X150X100 21,200 1,430 800 22,630
DS-PCGH-1520-1 150X200X130 22,800 1,430 800 24,230
DS-PCGH-2015-1 200X150X130 22,800 1,430 800 24,230
DS-PCGH-1525 150X250X100 22,800 1,560 900 24,360
DS-PCGH-2515 250X150X100 22,800 1,560 900 24,360
DS-PCGH-1525-1 150X250X130 24,300 1,560 900 25,860
DS-PCGH-2515-1 250X150X130 24,300 1,560 900 25,860
DS-PCGH-2020-S 200X200X100 23,500 1,560 900 25,060
DS-PCGH-2020 200X200X130 25,700 1,560 900 27,260
SWITCH BOX (옥외용) 힌지개폐형
색상 DS-PCTH-0811 80X110X70 11,900 650 300 12,550
카바:투명 DS-PCTH-1108 110X80X70 11,900 650 300 12,550
본체:회색 DS-PCTH-0813 80X130X70 13,500 780 320 14,280
DS-PCTH-1308 130X80X70 13,500 780 320 14,280
재질 DS-PCTH-0818 80X180X70 19,200 780 450 19,980
카바:PC DS-PCTH-1808 180X80X70 14,900 780 450 15,680
본체: DS-PCTH-0825 80X250X70 20,300 1,300 550 21,600
PBT DS-PCTH-2508 280X80X70 16,000 1,300 550 17,300
DS-PCTH-0811-1 80X110X85 13,600 650 300 14,250
DS-PCTH-1108-1 110X80X85 13,600 650 300 14,250
DS-PCTH-0813-1 80X130X85 15,700 780 320 16,480
DS-PCTH-1308-1 130X80X85 15,700 780 320 16,480
DS-PCTH-0818-1 80X180X85 20,600 780 450 21,380
DS-PCTH-1808-1 180X80X85 16,400 780 450 17,180
DS-PCTH-0825-1 80X250X85 21,700 1,300 550 23,000
DS-PCTH-2508-1 250X80X85 17,600 1,300 550 18,900
DS-PCTH-1212-S 125X125X75 16,300 910 500 17,210
DS-PCTH-1212 125X125X100 17,100 910 500 18,010
DS-PCTH-1217 125X175X75 20,600 1,300 550 21,900
DS-PCTH-1712 175X125X75 17,400 1,300 550 18,700
DS-PCTH-1217-1 125X175X100 22,800 1,300 550 24,100
DS-PCTH-1712-1 175X125X100 18,300 1,300 550 19,600
DS-PCTH-1417 140X170X95 11,200 1,430 600 12,630
DS-PCTH-1714 170X140X95 11,200 1,430 600 12,630
DS-PCTH-1520 150X200X100 21,200 1,430 800 22,630
DS-PCTH-2015 200X150X100 21,200 1,430 800 22,630
DS-PCTH-1520-1 150X200X130 22,800 1,430 800 24,230
DS-PCTH-2015-1 200X150X130 22,800 1,430 800 24,230
DS-PCTH-1525 150X250X100 22,800 1,560 900 24,360
DS-PCTH-2515 250X150X100 22,800 1,560 900 24,360
DS-PCTH-1525-1 150X250X130 24,300 1,560 900 25,860
DS-PCTH-2515-1 250X150X130 24,300 1,560 900 25,860
DS-PCTH-2020-S 200X200X100 23,500 1,560 900 25,060
DS-PCTH-2020 200X200X130 25,700 1,560 900 27,260
* 스위치 & 푸시버튼 박스 : H형의 매미고리, 힌지는세로에 취부함 *
(1형은 커버만 높아짐, S형은 BODY 사이즈만 낮아짐)
제품특징

실내용(열변형온도 -40℃ ~ +80℃)
분류 AG AT
재질 ABS 커버(PC), 본체(ABS)
색상 커버(회색), 본체(회색) 커버(투명), 본체(회색)

옥외용(열변형온도 -50℃ ~ +108℃)
분류 PG PT
재질 AC 커버(PC), 본체(AC)
색상 커버(회색), 본체(회색) 커버(투명), 본체(회색)

기타
- ABS : Acrylonitrile Butadiene Styrene
- P  C : PolyCarbonate
- A  C : ABS(40%) + pc(60%)
본사/공장 : 서울특별시 구로구 고척동 103-4 고척산업용품상가 가동 325호  (TEL) 02-2614-9707 (FAX) 02-2614-9709
중부사무소: 대전광역시 대덕구 대화동 289-1 산업용재유통상가 5동 127호  (TEL) 042-670-4000,670-8489  (FAX) 042-670-4404
COPYRIGHT (C) SAMJINENG.CO.KR.    ALL RIGHTS RESERVED.
